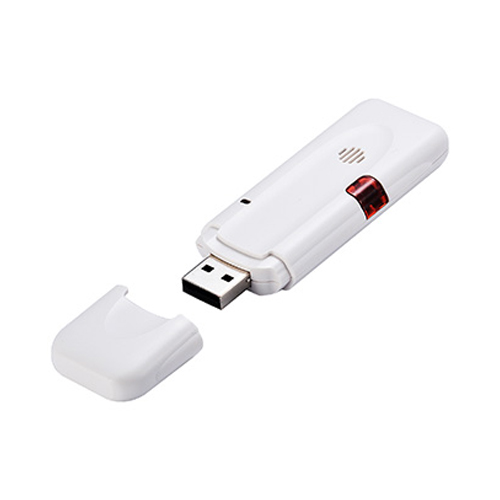

VISION Z-Wave USB Adapter

$124.00 incl GST

The VISION Z-Wave USB Adapter is a Z-Wave USB dongle. When attached to a PC, laptop etc, it becomes a Z-Wave communication device, which connect the PC/MAC based Z-Wave software(sold separately) with different Z-Wave devices through integrated USB.

Within the Z-Wave wireless network the Z-Stick acts as a static controller with enhanced (SUC/SIS) network management function. In order to use the full functionality a software application such as Z-Cloud or Z-Way is needed to run on the host. Z-Stick supports all kinds of third party software complying with the Zensys Serial API.

  • USB 2.0 full speed
  • XP, Vista and Windows7
  • Mac OS X 10.6.x Snow Leopard (and later)
  • Range: 30m indoors

1 in stock (can be backordered)

Category: SKU: DHS-CON-USB-VIS

Description

VISION Z-Wave USB Adapter is primarily designed to allow a host processer to control up to 232 Z-Wave devices using the Z-Wave technology protocol as well as simplifying Z-Wave network installation.

This device will work with the following software packages:

  • Homeseer
  • Z-Cloud
  • Z-Way

It requires suitable Z-Wave software (e.g. listed above), as it does not come with any Z-Wave control software itself.

Please Note: The Z-Wave USB Adapter requires a specific VCP driver to be installed.



RF Protocol
Z‐Wave (Multilevel Command Class)
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐wave device type
Z-Wave controller
Power
DC 5V
Operation Range
Up to 30m without obstacles
Application
Indoor use only
Operation temperature
0 ~ 60 °C
Status IndicatorLED light
Storage temperature
‐10 ~ 80 °C
Weight
30g
Housing
ABS
Dimensions
88 x 30 x 11mm

Additional information

Weight30 g
Dimensions88 × 30 × 11 mm
