Description

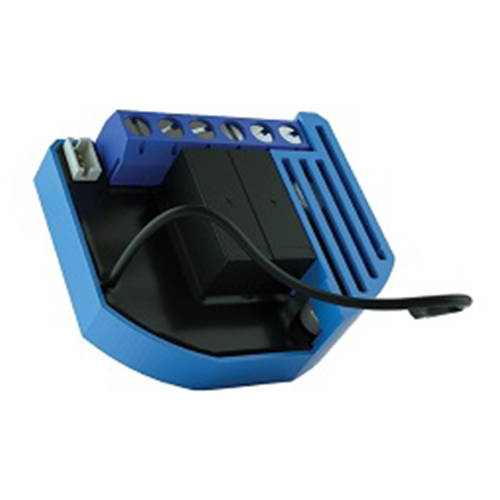

The GOAP Z-Wave Tubular Motor Controller is a Z-Wave Plus (500 series) controller for blind, roller and shade motors. It is designed to fit into an existing switch and enables you to wirelessly control blind motors using a Z-Wave enabled (921.42 MHz in AUS/NZ) controller and reports the motors actual power (Watts) and total power consumption (kWh). This device also supports precise positioning for motors equipped with mechanical or electronic switches.
The GOAP Z-Wave Tubular Motor Controller allows the connection of a temperature sensor which can report the local temperature to your Z-Wave gateway allowing it to better meet your heating/cooling needs.
This product integrates with all Australian certified (921.42 MHz) Z-Wave Controllers.
RF Protocol | Z‐Wave Plus (500 series chip) |
RF Frequency | 921.42Mhz ‐ AU/NZ approved RF for Z‐wave |
Z‐Wave device type | Z-Wave binary switch, routing slave |
Power | 230 VAC ± 10% |
Load | 2 x 920W (4A resistive @ 230V AC) |
Power Consumption | < 0.7W |
Operation Range | Up to 30m indoors (with no obstacles) |
Application | Indoor use only |
Operation temperature | 10 ~ 40 °C |
Storage temperature | ‐10 ~ 60 °C |
Weight | 30g |
Dimensions | 41.8mm x 36.8mm x 16.9mm |
