Description

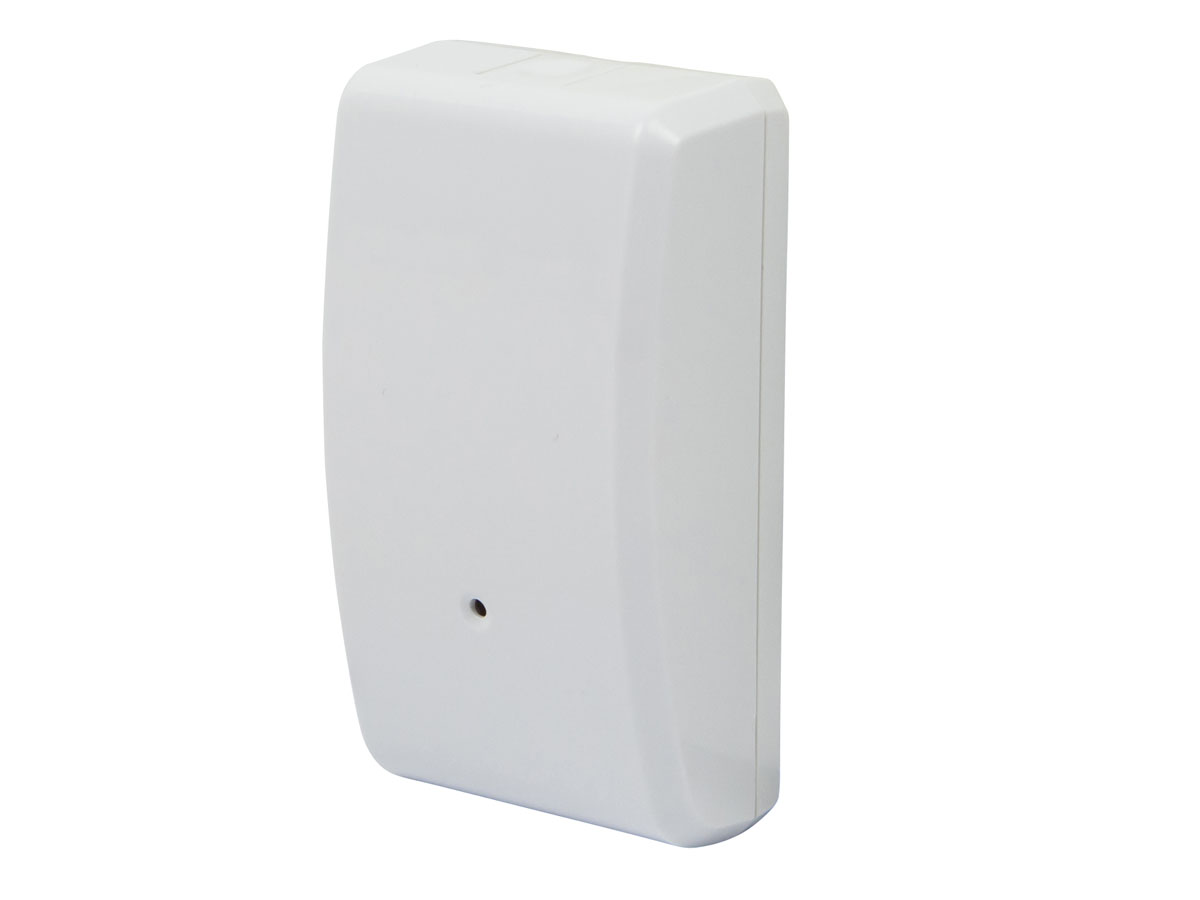

The VISION Z-Wave Garage Door Tilt Sensor is a battery-powered device capable of detecting the horizontal or vertical position of your garage door allowing you to monitor its state from anywhere using your Z-Wave gateway.
- Tilt sensor function
- Supports an external switch/binary sensor
- Long battery life with low power status indicator
- Integrates with all certified Z-Wave controllers in Australian version (921.42MHz)
The VISION Z-Wave Garage Door Tilt Sensor is powered by a single lithium CR123A battery which can last 3-5 years under normal conditions. A visual (LED) warning and Z-Wave notification event will be sent to the controller or any associated Z-Wave device when the battery needs to be replaced. Its small size makes it ideal for a wide variety of uses and for maximum integration possibilities.
The device also features two additional terminals allowing you to connect an external dry contact input which operates in parallel to its tilt sensing. You can add an external switch or any binary sensor, such as a door/window sensor.
RF Protocol | Z-Wave ™ |
RF Frequency | 921.42Mhz ‐ AU/NZ approved RF for Z‐wave |
Application | Indoor use only |
Power | 1 x CR123A Battery |
Operation Range | Up to 30m indoors with no obstacles |
Enclosure | White |
| Operating Temp. | -15°C ~ 60°C |
Dimensions | (LxWxH) 74 x 42 x 25mm |
Compliance | EMC 2004/108/EC |
