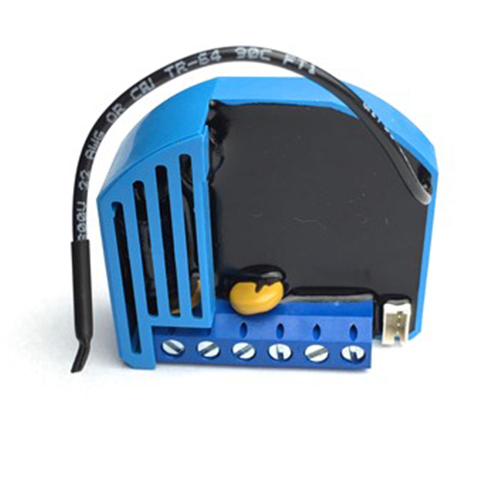

GOAP Z-Wave Double Switch

The GOAP Double Switch is Z-Wave module for switching on or off one or two electrical devices (e.g. light, fan, etc …). The module can be controlled either through Z-wave network or through the wall switch manually.

This module is designed to be mounted  behind a traditional wall switch. Module measures power consumption of load and supports connection of digital temperature sensor. It is designed to act as repeater in order to improve range and stability of Z-Wave network.

Supported switches

Module supports mono-stable switches (push button) and bi-stable switches. The module is factory set to operate with bi-stable switches.

Features:

• Compatible with any Z-Wave Controller.
• Dimensions (W x H x D) 41,8 x 36,8 x 15,4mm
• Power monitoring accuracy P=5-50W, +/-3W; P˃50W, +/-3%;
• Digital temperature sensor range (sensor must be ordered separately) -50 ~ 125°C
• Support for the connection of digital temperature sensor (optional part)
• 2 binary inputs offer the option to connect additional devices such as sensors, switches/push buttons, etc.
