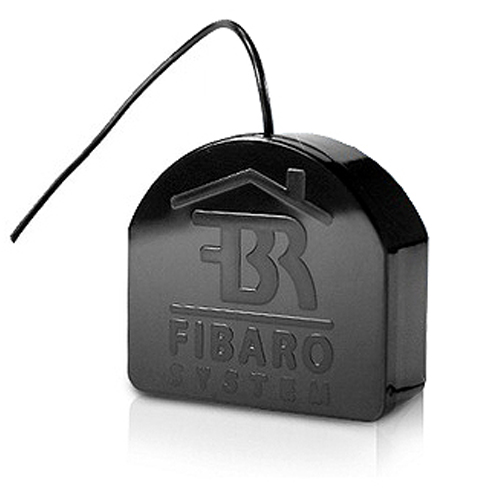

FIBARO Z-Wave Double Switch InWall

$149.00 incl GST

The Fibaro Z-Wave Double Switch Controller (FGS-222) is a smart Z-Wave controller capable of remotely operating your existing light fittings. It works with Z-Wave enabled controllers (AUS/NZ version) and can be controlled individually or as part of a group in a pre-configured Scene.

The device is designed to operate inside your wall socket and can be easily installed by a qualified electrician.

The Fibaro Z-Wave Double Switch Controller (FGS-222) is a wireless controller which can control two circuits each with a maximum load of 1.5kW per circuit.

  • Control the ON-OFF function of two two independent lights or appliances remotely or using a wall switch
  • Compatible with all Z-Wave networks
  • Acts as a repeater expanding your Z-Wave network
  • Wide range of compatibility with existing light fittings and does NOT require expensive cabling

Available on backorder

Category: SKU: DHS-LIT-SWW-FIB-02

Description

This Fibaro Z-Wave Double Switch Controller requires 3-wire (including neutral) installation and works with an AC (110-230V) or DC (24-60V) power supply.

The controller is also compatible with many popular BELL PRESS type light fittings including Clipsal IMPRESS and SATURN wall switches.

The Fibaro Z-Wave Double Switch Controller also features a secondary switch input which allows it to directly control other associated Z-Wave devices. This means that by turning the switch ON/OFF you can also turn other associated devices ON/OFF even if they are not physically connected to the same Fibaro module. It also enables you to control the local load as part of 2-way and multi-way lighting circuits.

This product integrates with all Australian certified (921.42MHz) Z-Wave controllers.



RF Protocol
Z‐Wave
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐Wave device type
Z-Wave Switch, Routing Slave
Power
110-230V ± 10% 50/60 Hz
Operation Range
Up to 15m indoors with no obstacles
Application
Indoor use only, up to 1.5kW resistive load per circuit
Operation temperature
0 ~ 55 °C
Storage temperature
‐10 ~ 80 °C
Weight
50g
Housing
ABS
Compliance
EN 55015, EN 60669-2-1
Regulatory Compliance Mark
N5496
Dimensions
(LxWxH) 42mm x 37mm x 17mm

Additional information

Weight50 g
Dimensions42 × 37 × 17 mm
