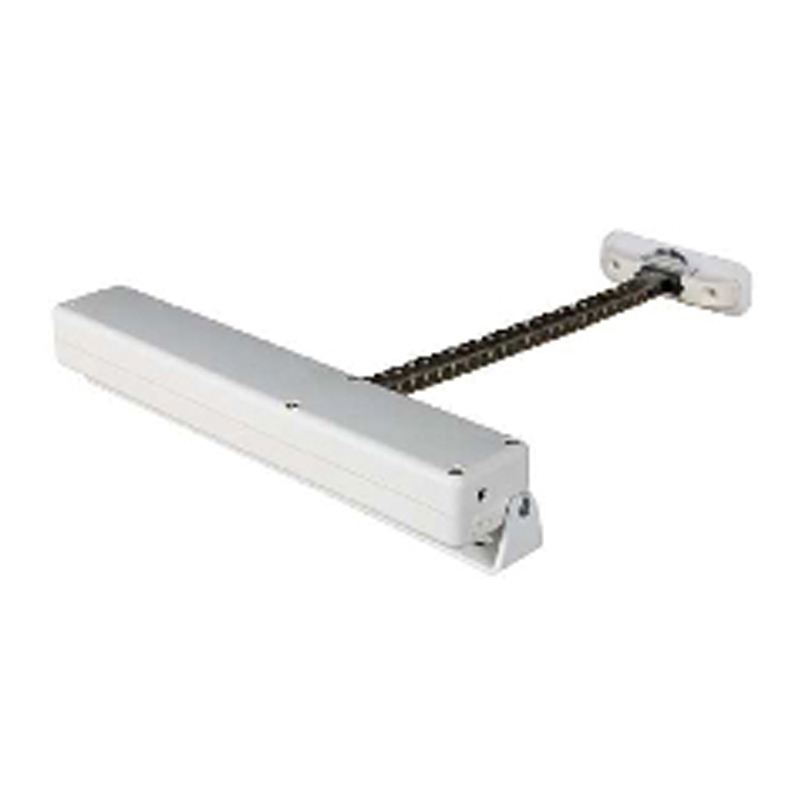

FAKRO Z-Wave Window / Chain Winder 15V

$449.00 incl GST

For the most convenient use of your motorized window system, the FAKRO Z-Wave Chain Winder allows for remote accessibility anywhere around the home. Featuring an intuitive button prompt command process, this Z-Wave Chain Winder can easily be included into any existing Z-Wave system.

From skylights, awnings, tilted fixtures to bottom-hung/top-hung windows, the Chain Winder can be installed into many common window fittings. For the best results and consideration for your safety, always rely on a qualified electrician to install the Z-Wave Chain Winder device for you. The Chain Winder interacts with other Z-Wave products through a two-way radio communication system, which allows for uninterrupted operation on a consistent basis. The catch holder comfortably connects to the actuator chain for a strong and durable fitting, while the programming and manual operation buttons allow for easy inclusion with other Z-Wave devices.

Available on backorder

Category: SKU: DHS-WIN-WO-FKR-12

Description

The FAKRO Z-Wave W/Chain Winder 12V is highly recommended for rooms with hard to reach windows. An automated system that controls ventilation openings can contribute significantly to maintaining a healthy and comfortable indoor climate. The European engineered, manufactured and certified FAKRO Z-Wave Chain Winder is the perfect solution to inaccessible windows and centralised managed buildings with automated natural ventilation.

  • Program in conjunction with the FAKRO ZWMP Weather Module, for automated window closing upon detecting rain and windfall
  • Remote control functionality for ease of use
  • Overload protection
  • Easily programmable to communicate with compatible Z-Wave gateways
  • Automatic switch off once fully extended



RF Protocol
 Z‐Wave™
RF Frequency
 921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐Wave device type
 Z-wave binary opener, routing slave
Status Indicator
 LED Lights
Operation Range
 Up to 40m without obstacles
Application Indoor use only
Power supply
 12-15V DC (power supply not included)
Rated current 0.72A
Standby current 0.03A
Connection typeFlying leads wires 2 x 0.75mm2 (0.4m)
Operation temperature
 -5 ~ 50 °C
Dimensions L x W x H
 262mm x 47mm x 33.5mm
Opening / Closing force 200 N
Chain reach 240mm
Weight
 0.85 kg
Housing
Metal Alloy
Limit stop Micro switches

Additional information

Weight850 g
Dimensions262 × 47 × 33.5 mm
