Description

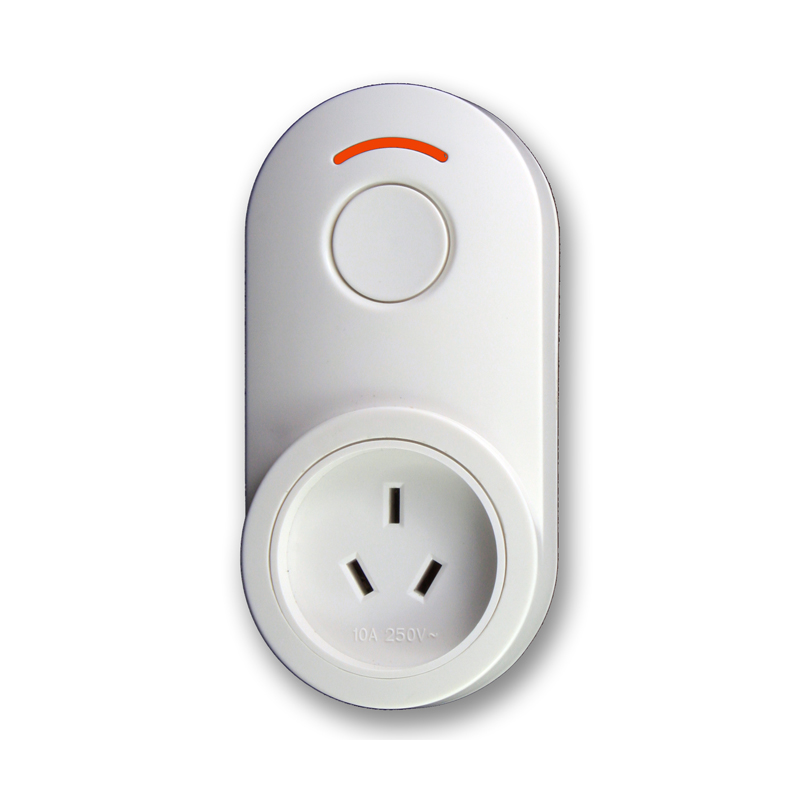

The DHS Z-Wave Plug-In Switch is a switch which can be plugged into any standard Australian type socket. This smart device can be used to turn your home appliances ON/OFF either manually or remotely using a certified Z-Wave™ controller. DHS Z-Wave Plug-In Switch (Plug-In Appliance Module) is for remote on/off switching of appliances, motor loads up to 1/2HP, or free-standing lights, including incandescent, magnetic low voltage, fluorescent and compact fluorescent loads.
Typical applications include switching of fluorescent lamps, portable fans, kitchen appliances, indoor fountains and more.
This device is fully configurable via Z-Wave™ parameters. E.g. you can set the max load limit at which the switch will automatically turn OFF, or you can specify the power measuring precision, or set how the switch should behave after power off – last remembered status or just OFF. More on configuration via Z-Wave™ parameters in the product manual (attached below).
Integrates with all Australian certified(921.42MHz) Z-Wave controllers.
RF Protocol | Z‐Wave™ |
RF Frequency | 921.42Mhz ‐ AU/NZ approved RF for Z‐Wave™ |
Z‐wave device type | Power Switch Binary, Routing Slave |
Connections Type | Australian type AC socket |
Operating Voltage | AC 230V / 50Hz |
Max Loading | 2200W / 10A |
Status Indicator | Red LED light |
Operation Range | Up to 30m without obstacles |
Application | Indoor use only |
Operation temperature | 0 ~ 50 °C |
Storage temperature | ‐5 ~ 65 °C |
Weight | 150g |
Housing | ABS |
Compliance | RCM, SAA Approvals SAA-152104-EA |
