$49.00 incl GST

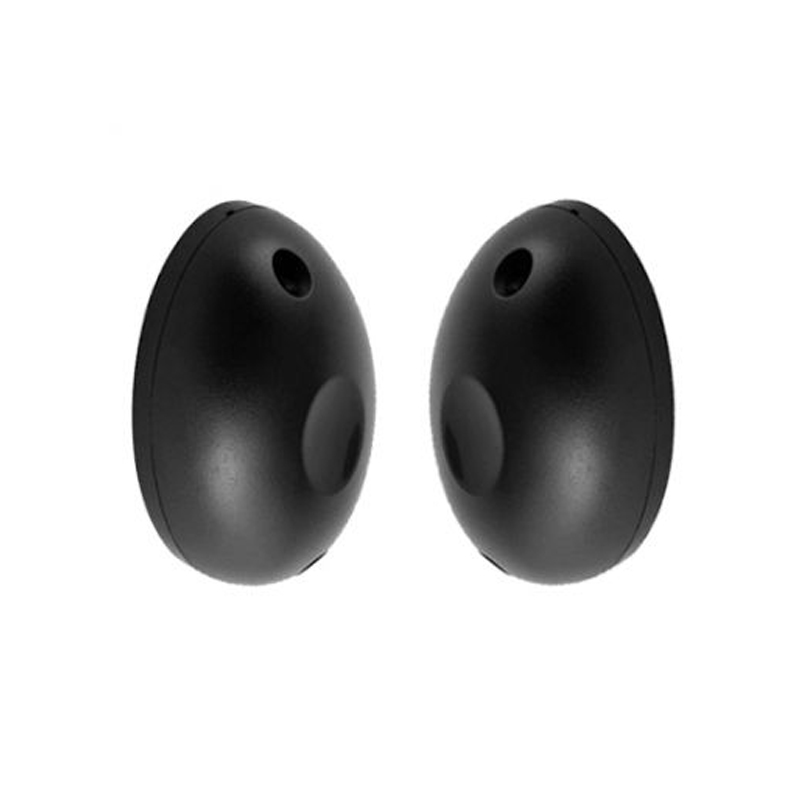

The Active Infrared Sensor is part of sensors family that creates an invisible infrared beam between the two units which can be placed up to 20 metres apart. The trigger activates when someone or something moves through and breaks the beam. This sensor can be connected with any binary Z-Wave sensors to be a part of Z-Wave ecosystem.
It can be great safety option for the garage door automation. Ideal for nursing care of the elderly, monitoring of children’s movements, monitor doorways, windows, deterring and warning of unwanted intruders etc.
Please note: 12V Power supply is required.
Available on backorder
Product Name | Active Infrared Sensor |
Type | Single Beam |
Operation Range | 20m |
Power | DC/AC 12 to 24V (not in the set) |
Wave Length | 940nm |
Infra-red Frequency | 1.92Khz |
Operation temperature | -20°C to 70°C |
| Input | RX 15mA~TX 30mA |
Net Weight | 93g |
Housing | ABS |
Size (Each One) | 7.5 x 4.8 x 3cm |
| Weight | 93 g |
|---|---|
| Dimensions | 75 × 48 × 30 mm |
